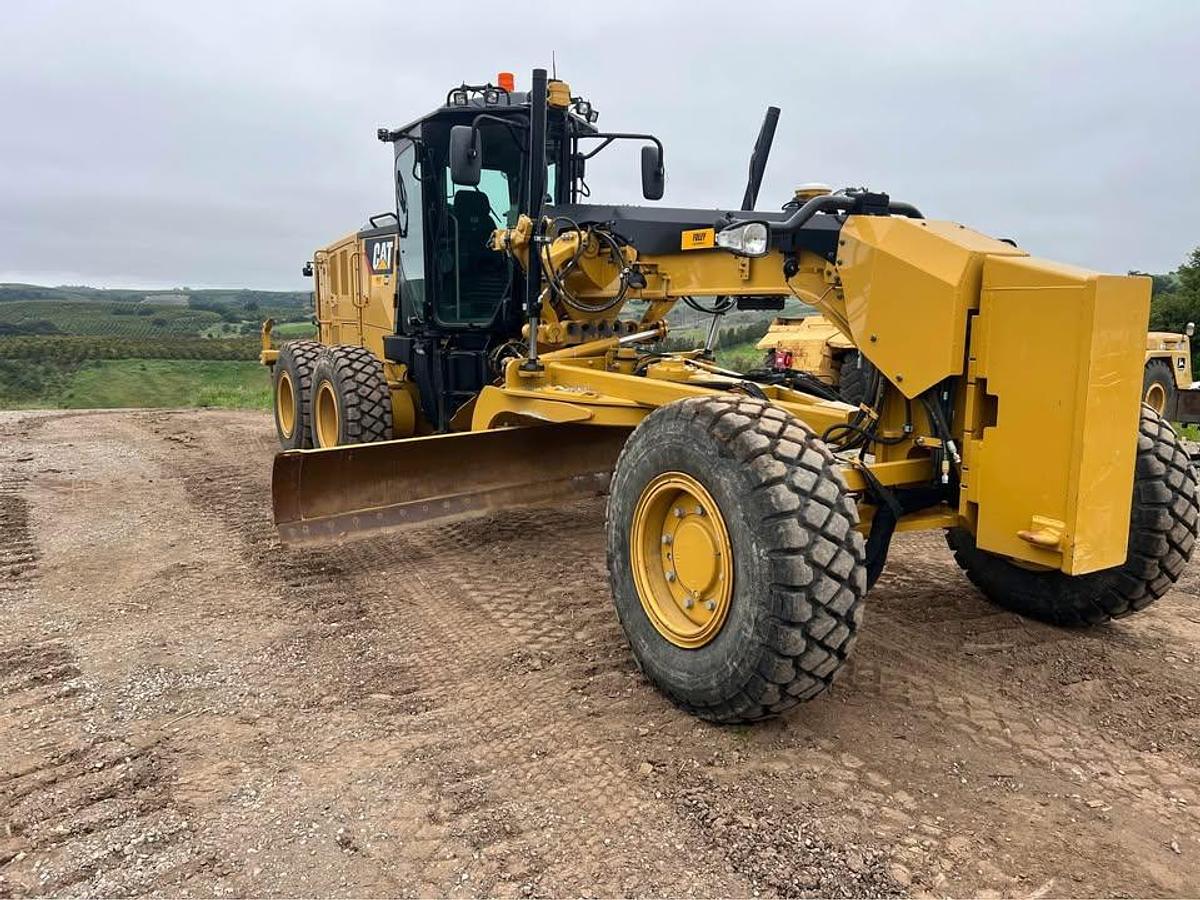

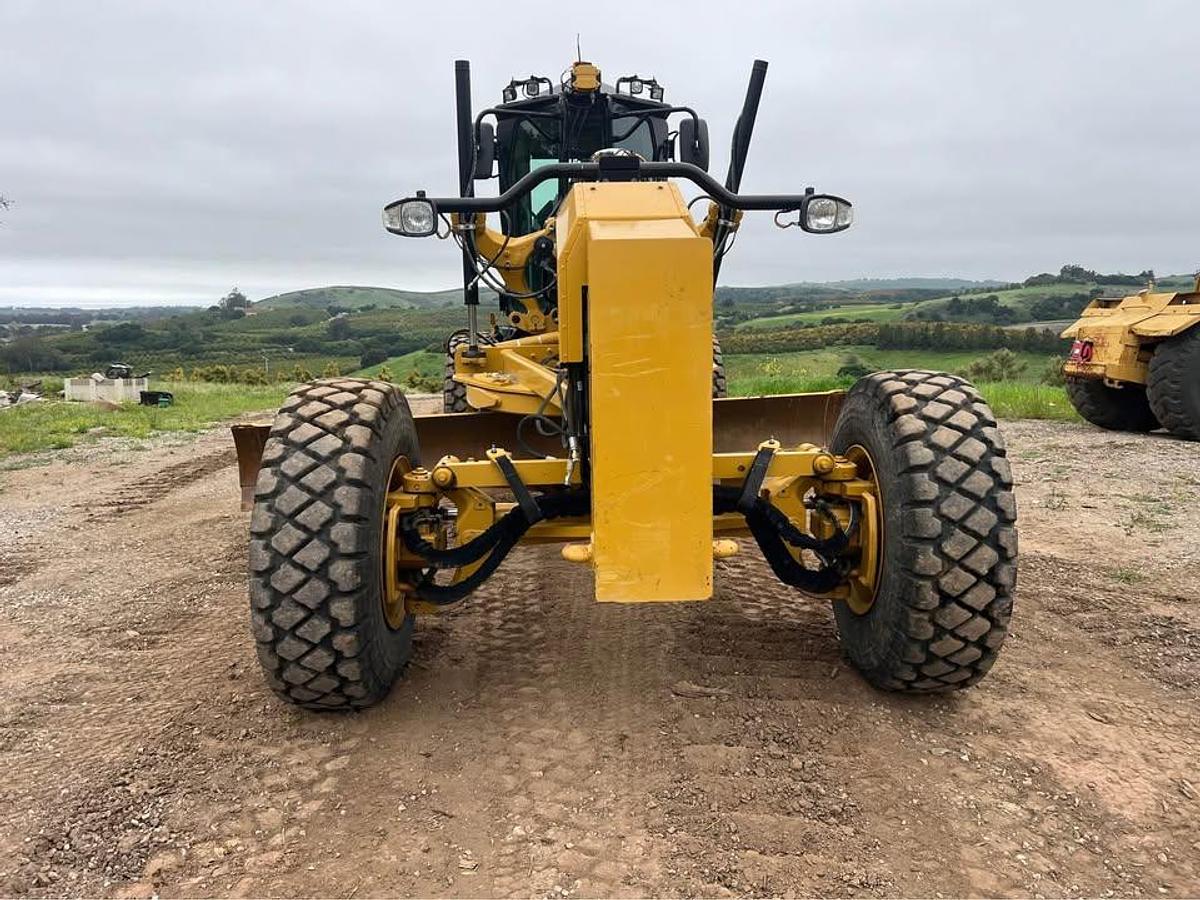

2018 Caterpillar 140M3 AWD Motor Grader

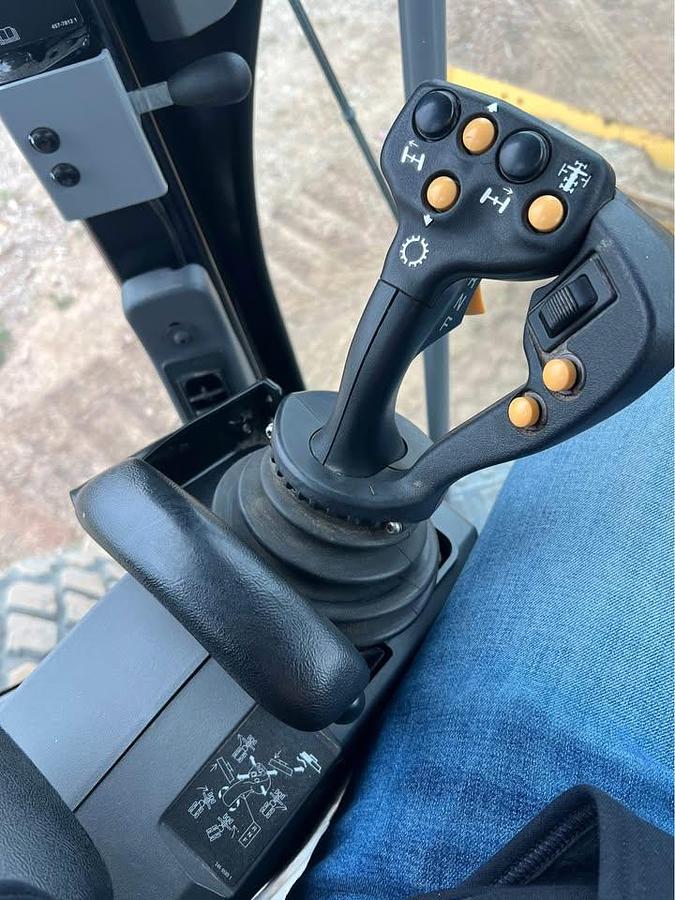

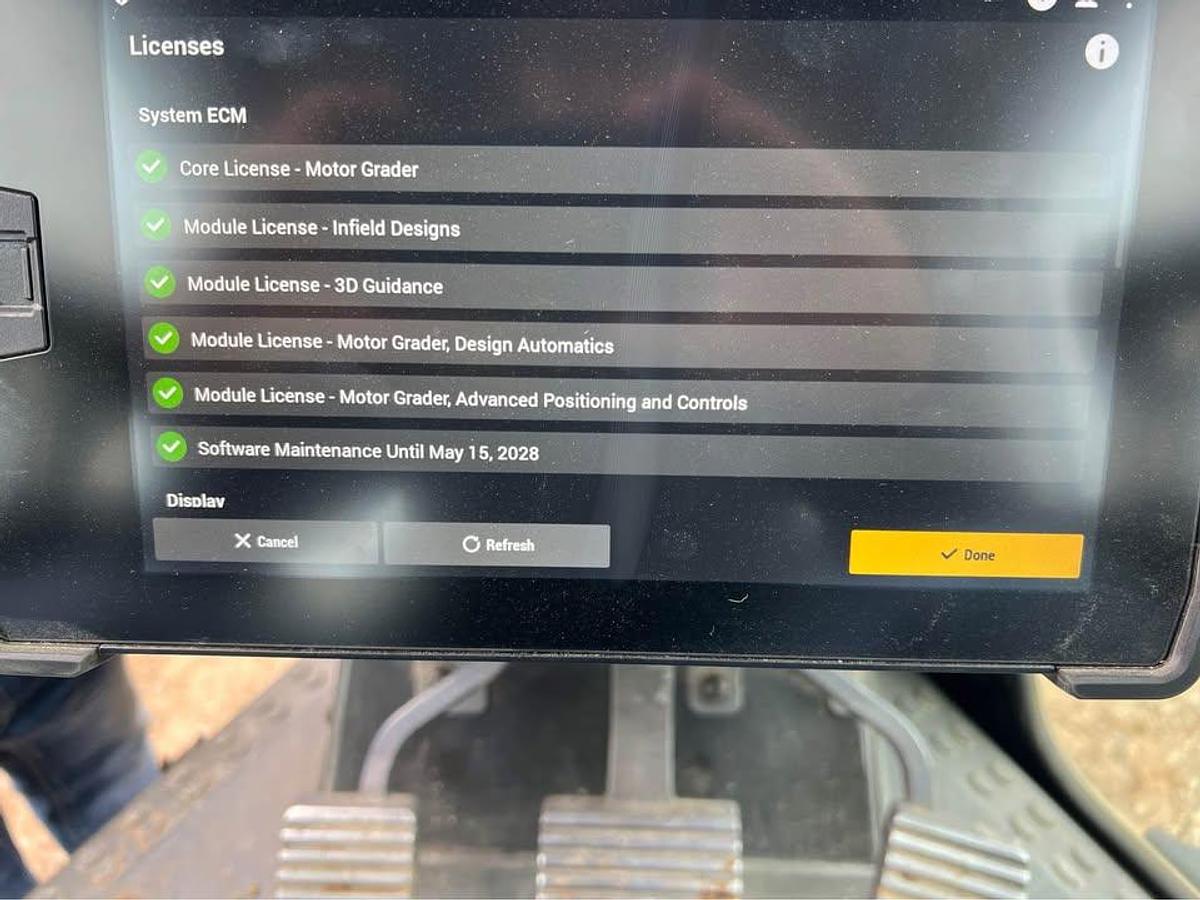

2018 Caterpillar 140M3 AWD Motor Grader This 2018 Cat 140M3 All-Wheel Drive Motor Grader is loaded and work-ready. Outfitted with Trimble Earthworks and Infield Design, it’s GPS-grade control capable and built for precision. This machine includes rear rippers, full articulation, accumulators, and possibly joystick steering with integrated GPS controls. ENGINE - Model: Cat® C9.3 ACERT™ - Emissions: U.S. EPA Tier 4 Final / EU Stage IV - Net Power (ISO 9249): 250 hp (186 kW) - Gross Power (SAE J1995): 258 hp (192 kW) - Displacement: 9.3 L (567 in³) - Bore x Stroke: 115 mm × 149 mm (4.5 in × 5.9 in) - Engine Speed: 2,000 rpm - Fuel Tank Capacity: 416 L (110 gal) - DEF Tank: 29 L (7.7 gal) TRANSMISSION - Type: Direct Drive, Power Shift - Gears: 8 Forward / 6 Reverse - Max Forward Speed: 45.3 km/h (28.1 mph) - Max Reverse Speed: 36.8 km/h (22.9 mph) ALL-WHEEL DRIVE (AWD) - Type: Hydraulically Driven Front Wheels - Control: Manual or Auto Mode (torque-sensing) STEERING & CONTROL - Control Type: Advanced Joystick Control with Integrated GPS - Joystick Functions: Steering, blade lift, articulation, circle drive, drawbar sideshift - Steering Range: 25° Left / Right Articulation - Turning Radius (outside front tires): 7.39 m (24 ft 3 in) HYDRAULICS - System Type: Load Sensing, Closed Center - Pump Type: Variable Displacement Axial Piston - Pump Flow: 210 L/min (55.5 gal/min) - Blade Lift Accumulators: Installed - Maximum System Pressure: 2,750 psi (18965 kPa) MOLDBOARD & BLADE - Blade Width: 3.66 m (12 ft) - Blade Height: 610 mm (24 in) - Cutting Edge: 152 mm × 16 mm (6 in × 0.63 in) - Max Depth of Cut: 735 mm (28.9 in) - Max Blade Lift Above Ground: 406 mm (16 in) - Blade Tip (Fwd/Back): 40° / 5° - Circle Diameter: 1525 mm (60 in) - Side Shift (Right/Left): 660 mm / 508 mm (26 in / 20 in) REAR RIPPER - Type: Parallelogram Ripper - Shanks: 5 (standard) - Penetration Depth: 427 mm (16.8 in) - Spacing Between Shanks: 533 mm (21 in) - Penetration Force: 92.6 kN (20,812 lb) - Pry-Out Force: 123.6 kN (27,794 lb) OPERATOR STATION - Cab: Enclosed ROPS/FOPS with pressurization - Seat: Heated air-suspension, adjustable joystick pods - Controls: Dual Advanced Joysticks with full grader function - Climate Control: Heat & Air Conditioning standard - Displays: Full-color LCD monitor, diagnostics and grade settings - Rear Camera: Optional (frequently included) TECHNOLOGY - Grade Control Ready: Yes - GPS System: Trimble Earthworks with Infield Design - Software Compatibility: Cat Grade, AccuGrade™, Trimble GCS900/GCS900.2 - Machine Control: Integrated with joystick function - Telematics: Product Link™ Enabled DIMENSIONS & WEIGHT - Overall Length (with blade): 9.3 m (30 ft 6 in) - Width (outside front tires): 2.49 m (8 ft 2 in) - Height (top of cab): 3.43 m (11 ft 3 in) - Wheelbase: 6.6 m (21 ft 8 in) - Operating Weight (AWD w/ ripper): 20,236 kg (44,600 lb) OPTIONAL EQUIPMENT (INSTALLED ON THIS UNIT) - All-Wheel Drive - Rear Ripper – 5 Shank - Advanced Joystick Steering - Blade Lift Accumulators - Trimble Earthworks GPS with Infield Design - Full Enclosed Cab with HVAC - Product Link™ Telematics Available now: a well-maintained 2018 Caterpillar 140M3. Former state-owned fleet unit. Regularly maintained under a strict schedule. It has been inspected and maintained. Recent service includes: Battery and alternator replaced last season. Great value for the condition.
