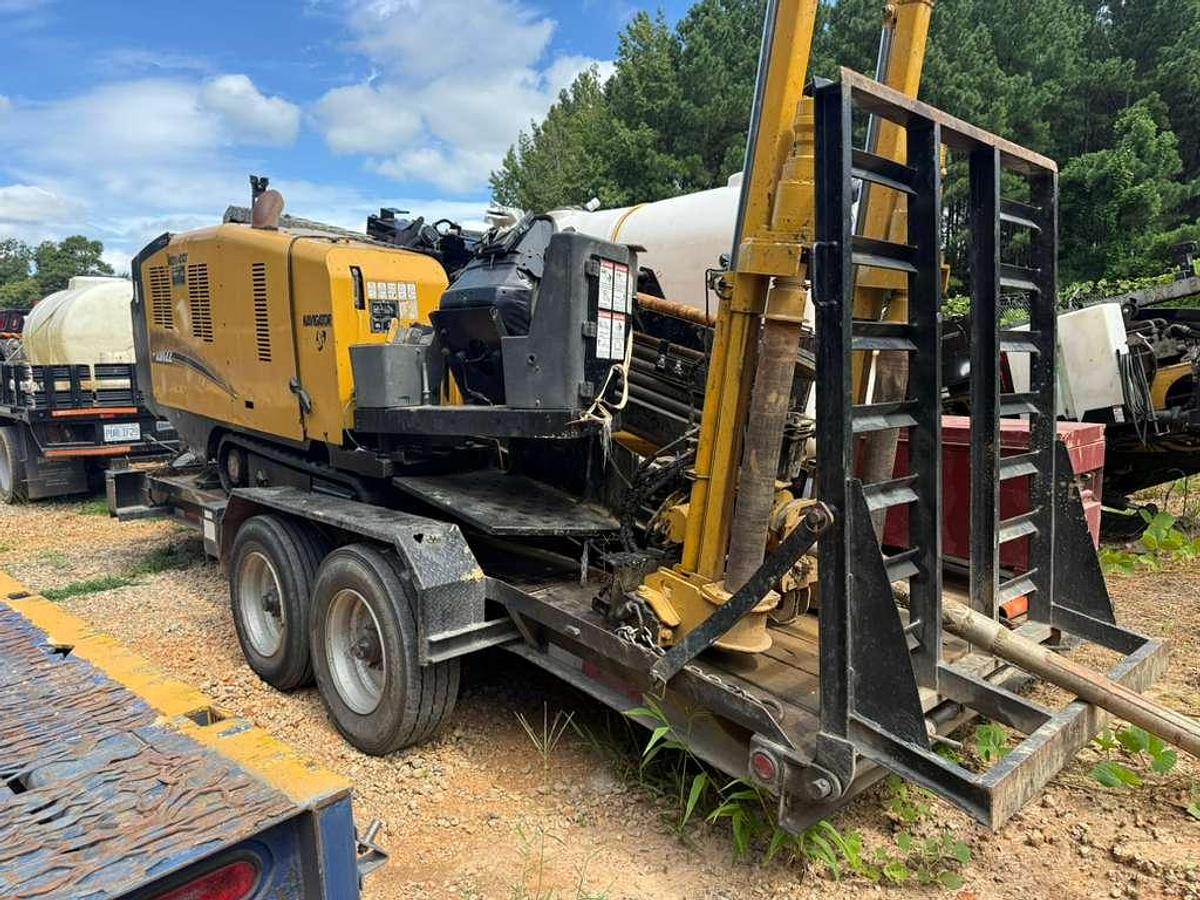

2016 Vermeer 20X22S3 Package

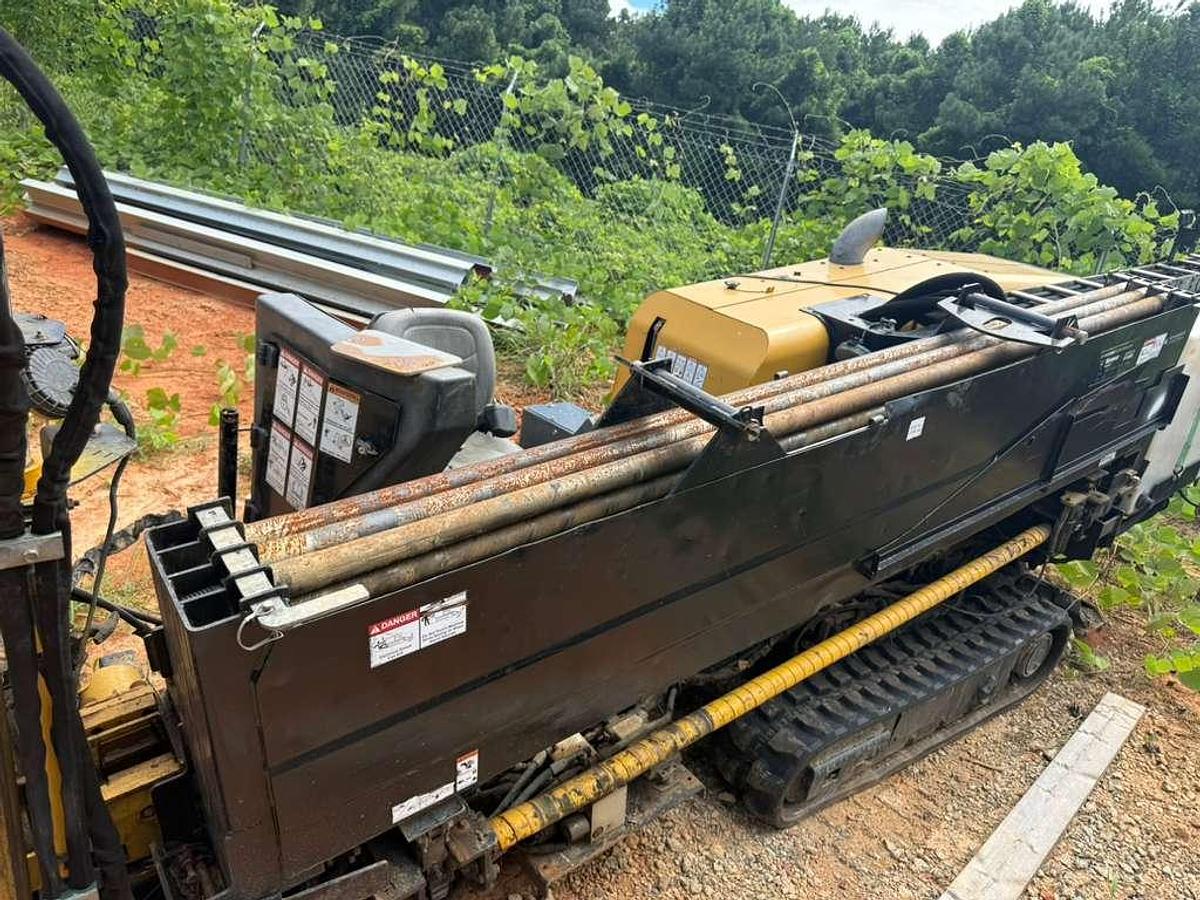

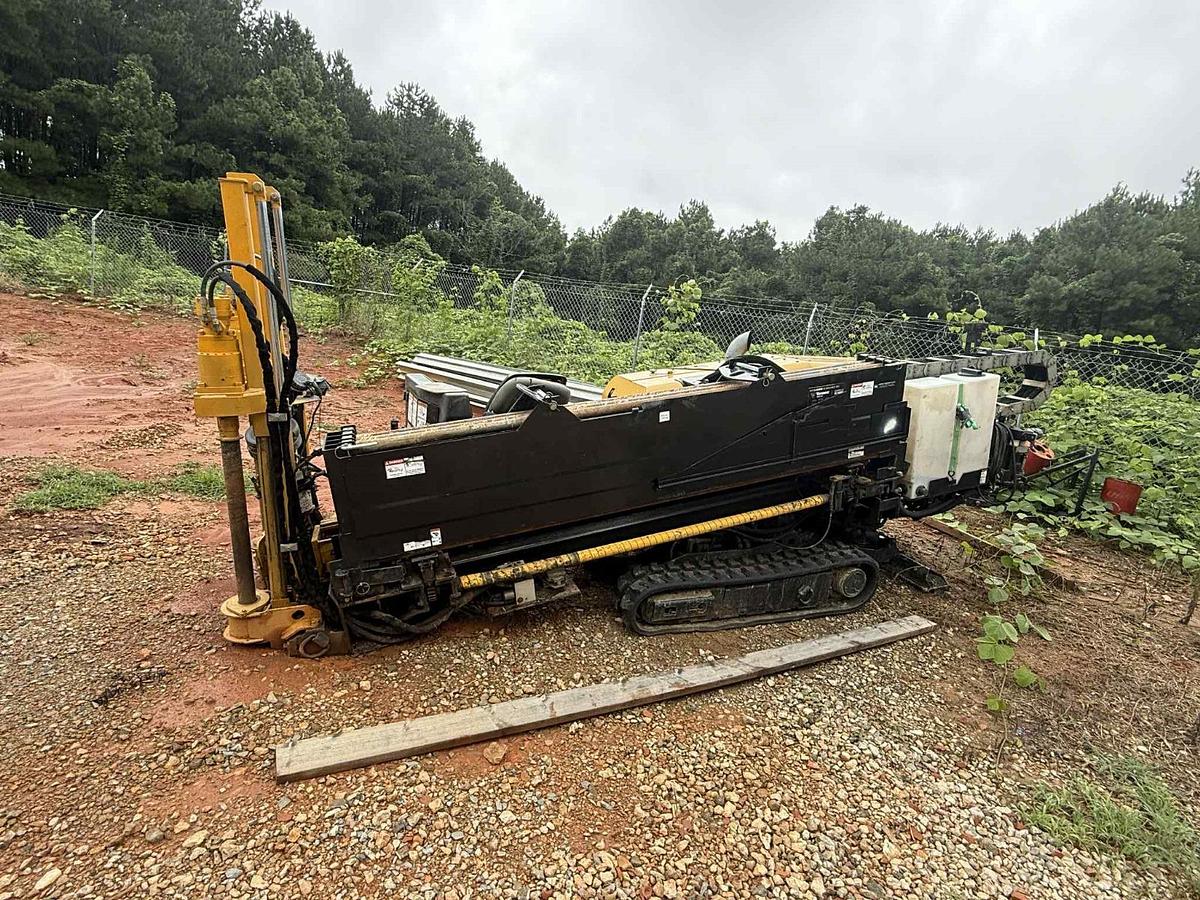

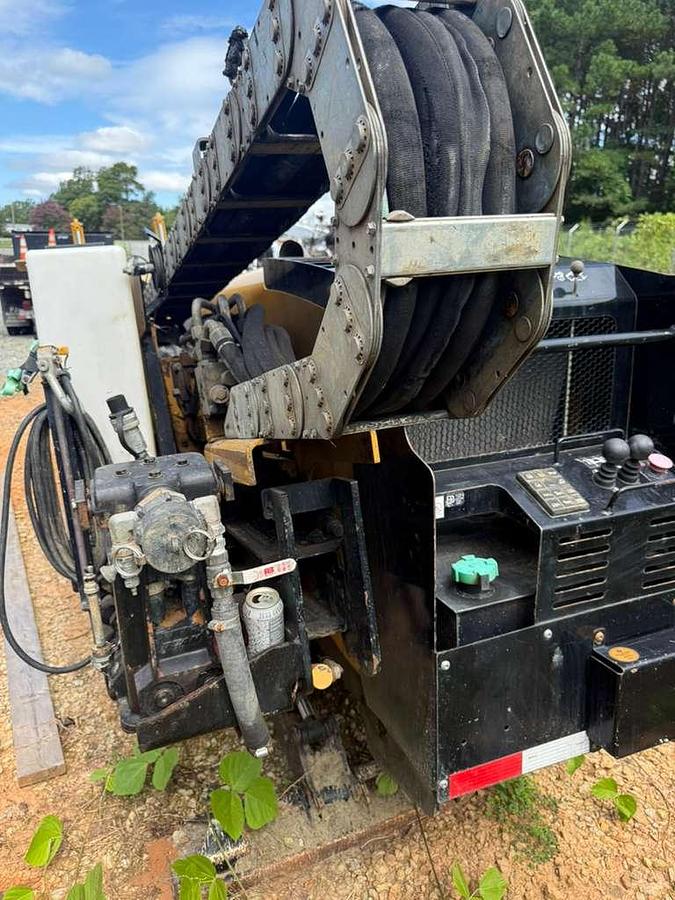

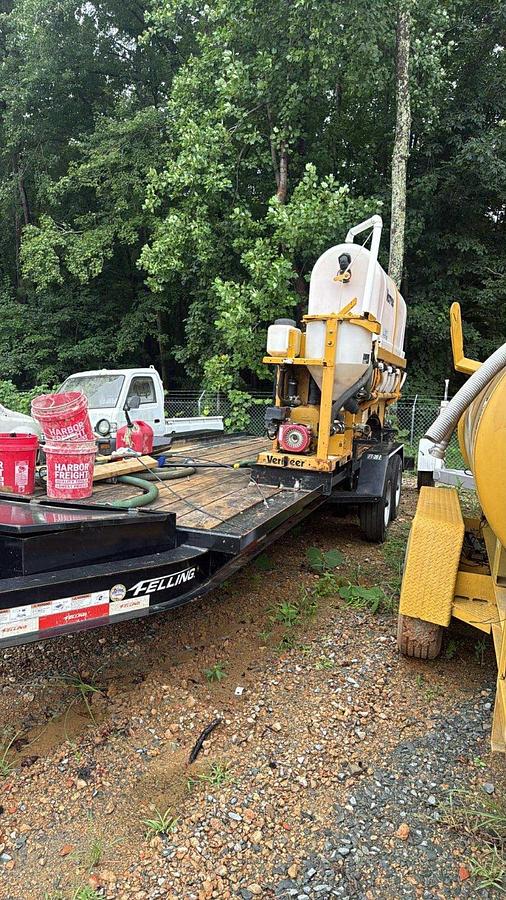

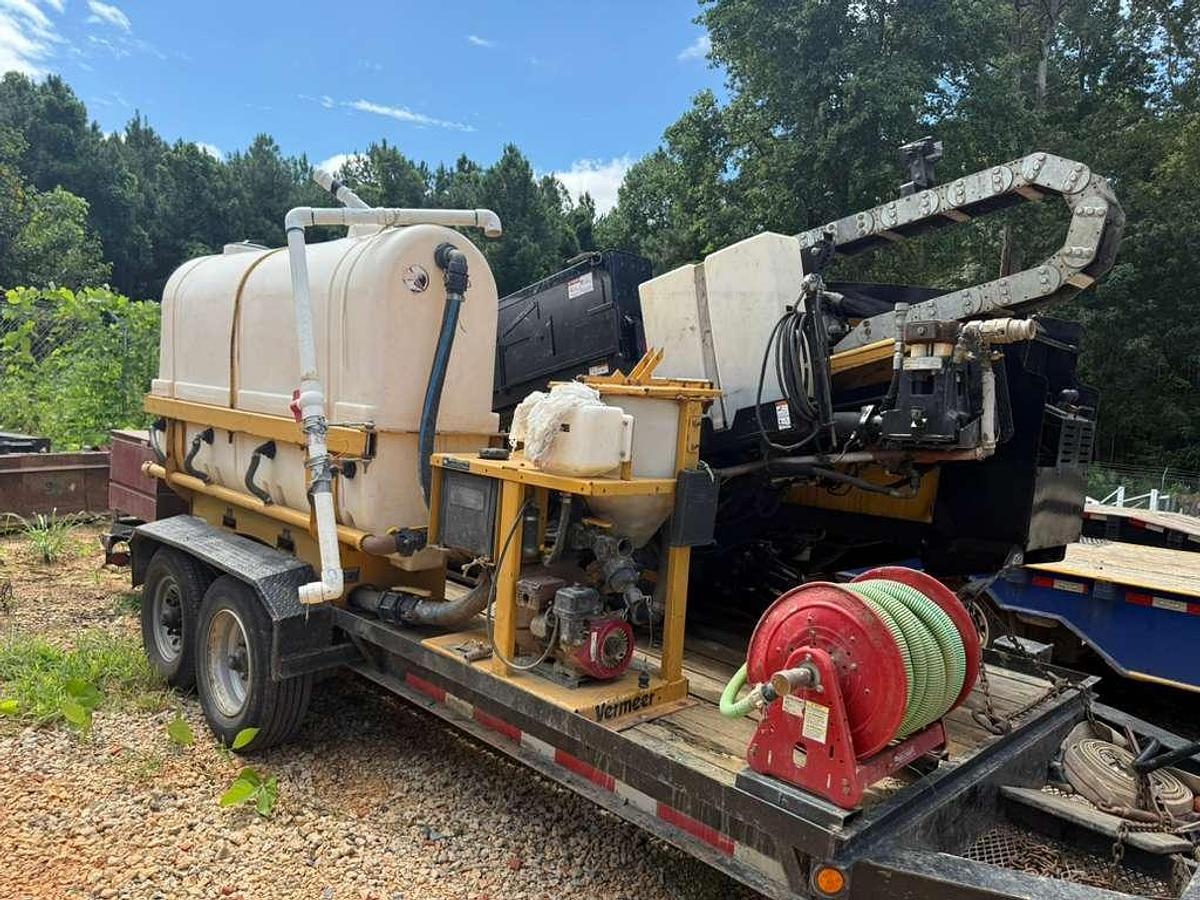

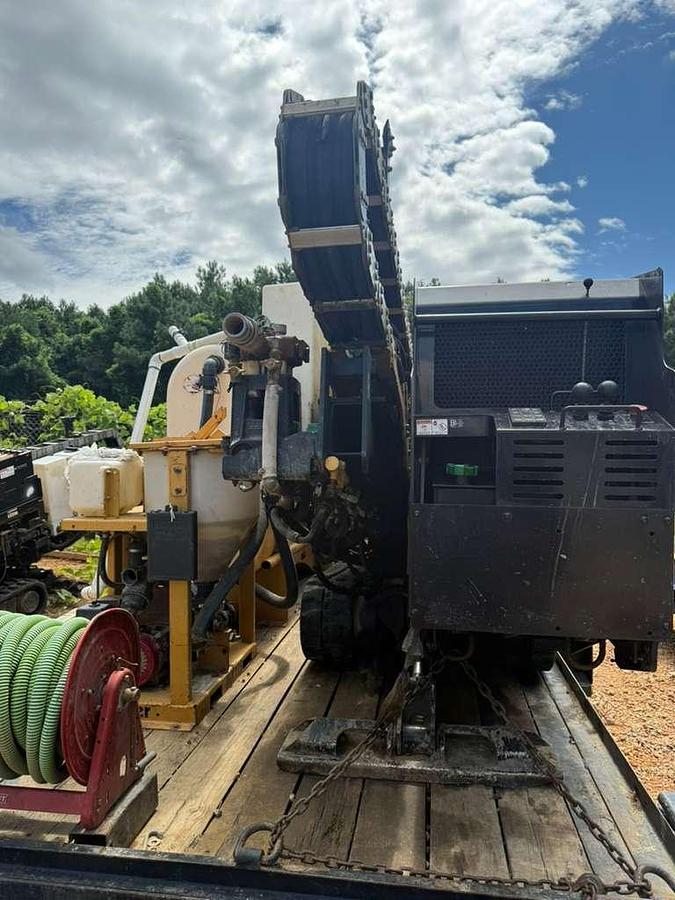

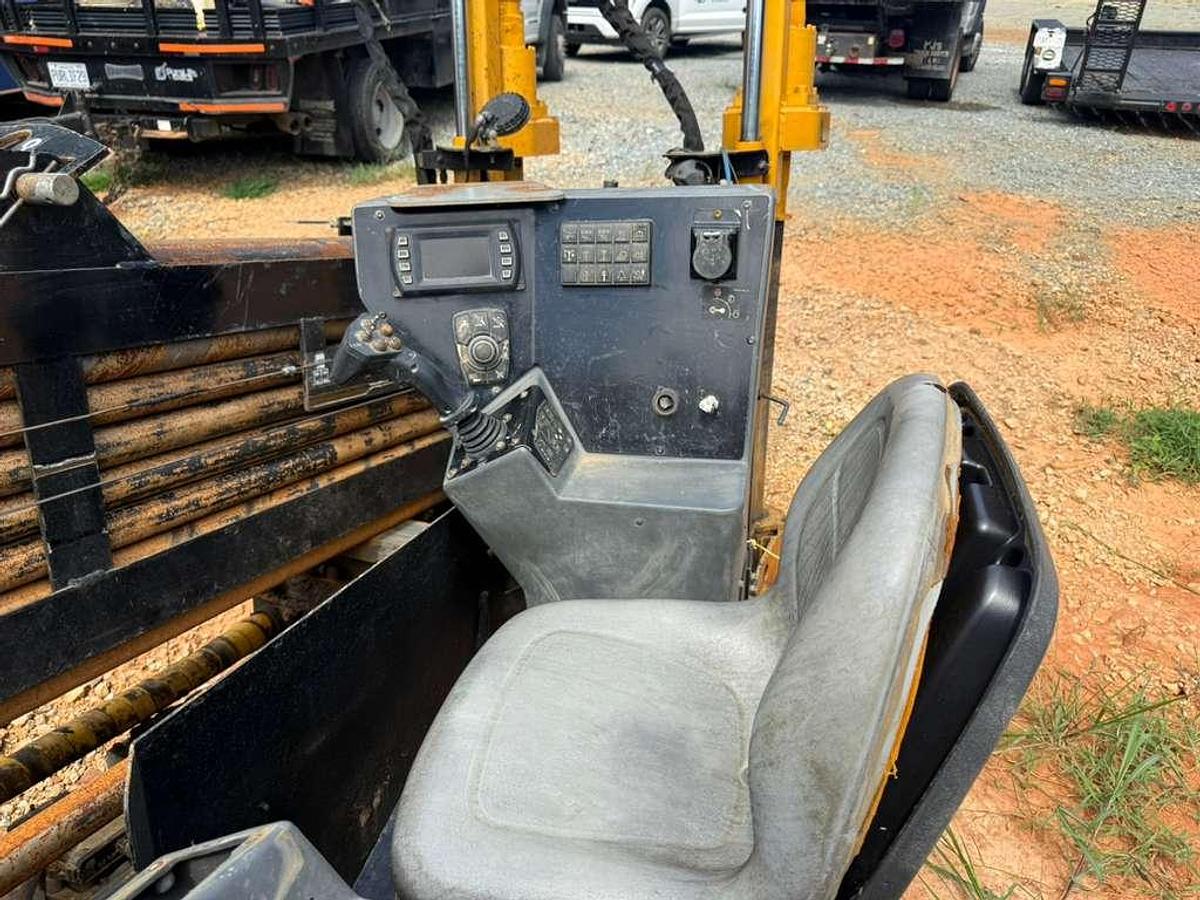

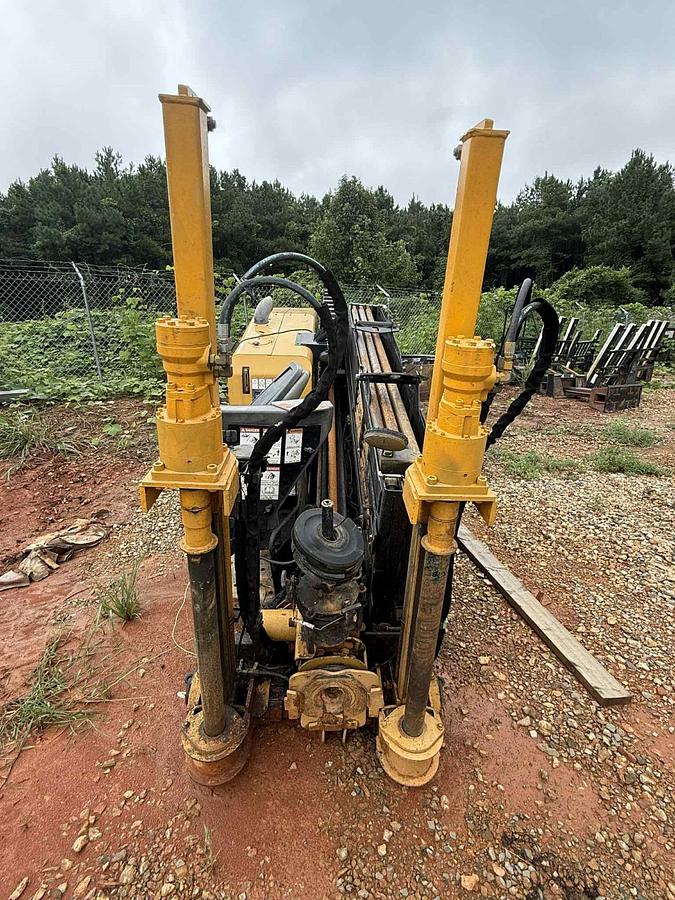

2016 Vermeer D20X22S3 Package: This 2016 Vermeer D20x22S3 package is a reliable solution for utility installation with 3000 hours of use. The compact, powerful directional drill features a Tier 4 Deutz engine, providing 19,500 lbs of thrust and pullback, and a class-leading 167 ft/min carriage speed. The package includes a custom trailer, mud mixing system, and a Mag8 locator, providing everything you need to start working efficiently. Manufacturer's Specs - Engine: Deutz TD2.9 - Gross Horsepower: 74 hp (55.2 kW) - Max Engine RPM: 2600 rpm - Fuel Type: Low sulfur diesel Operational - Thrust/Pullback: 19,500 lbs (86.7 kN) - Maximum Spindle Torque (Low): 2250 ft-lb (3050.6 Nm) - Maximum Spindle Speed: 257 rpm - Maximum Carriage Speed: 167 ft/min (50.9 m/min) - Minimum Bore Diameter: 3 in (7.6 cm) - Drill Rack Angle: 17° - Automated Rod Loader: Semi-automated Drilling Fluid System - Maximum Flow: 25 gpm (94.6 L/min) - Maximum Pressure: 1000 psi (68.9 bar) Dimensions & Weights - Length (Min Transport): 204 in (518.2 cm) - Width (Min Transport): 47.5 in (120.7 cm) - Height (Min Transport): 74 in (188 cm) - Weight: 10,850 lbs (4921.5 kg) Additional Features - Standard hydraulic vice breakout system - Standard flow indicator, stakedown system, strike alert, and remote lockout - Optional drilling lights Up for sale is a strong running 2016 Vermeer 20X22S3 Package. Surplus equipment from a regional electric company. Kept in excellent condition by professional mechanics. It has been inspected and maintained. Recent service includes: Battery and alternator replaced last season. Priced to sell fast.
