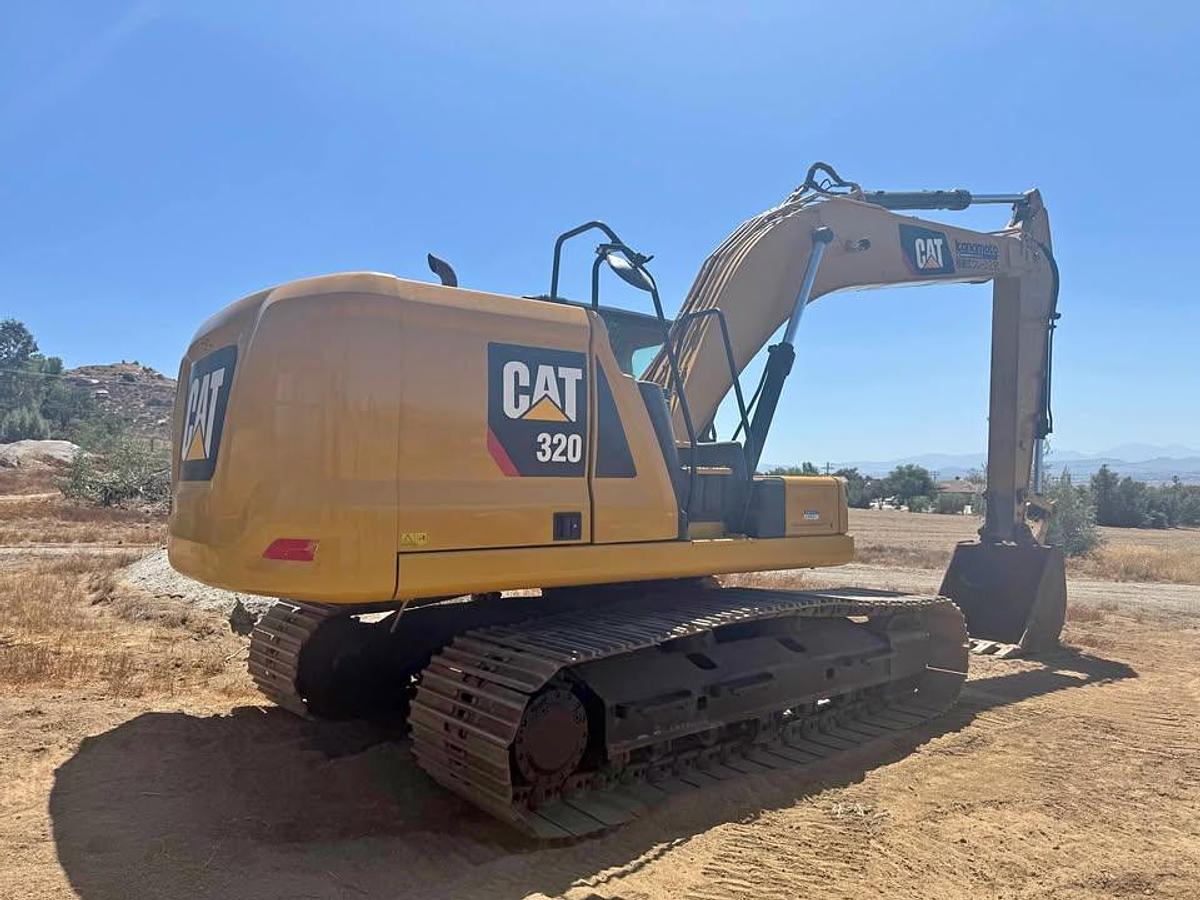

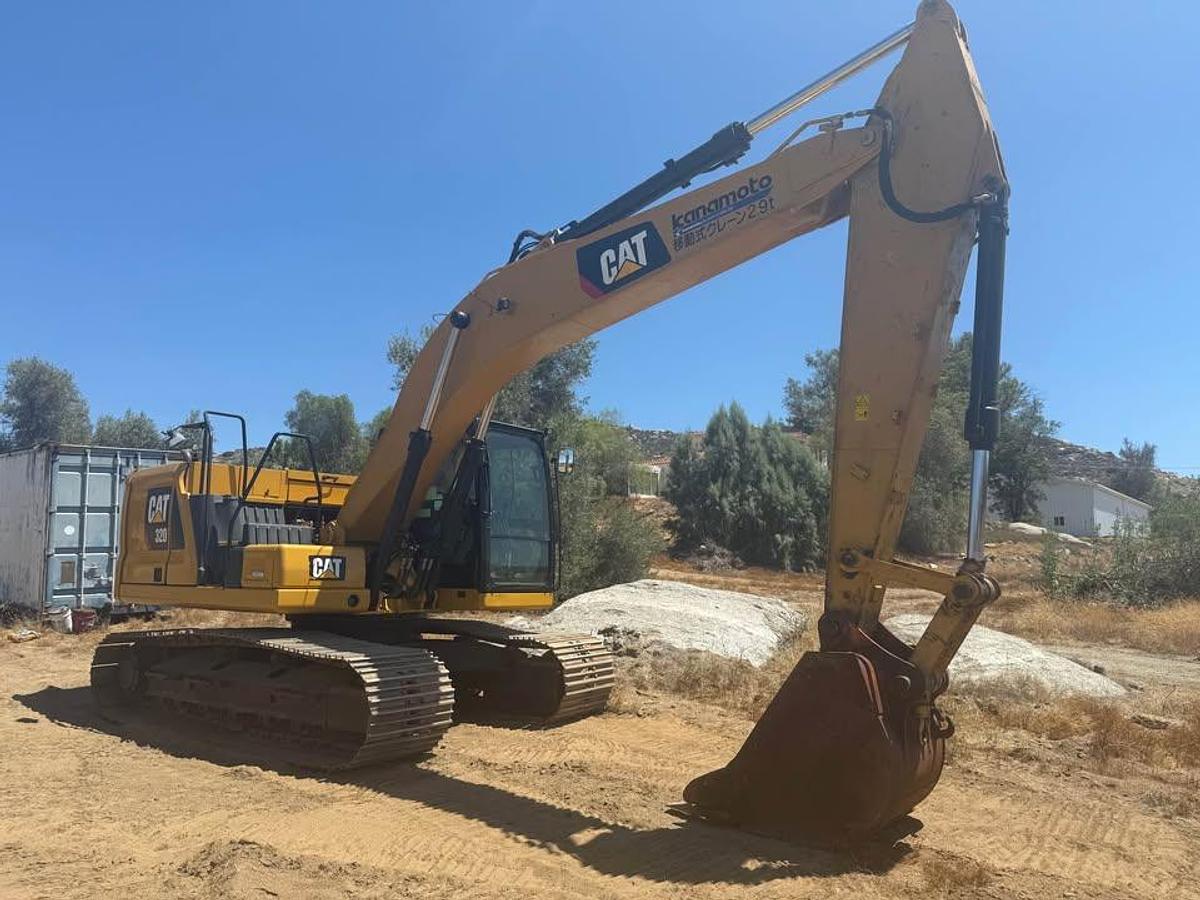

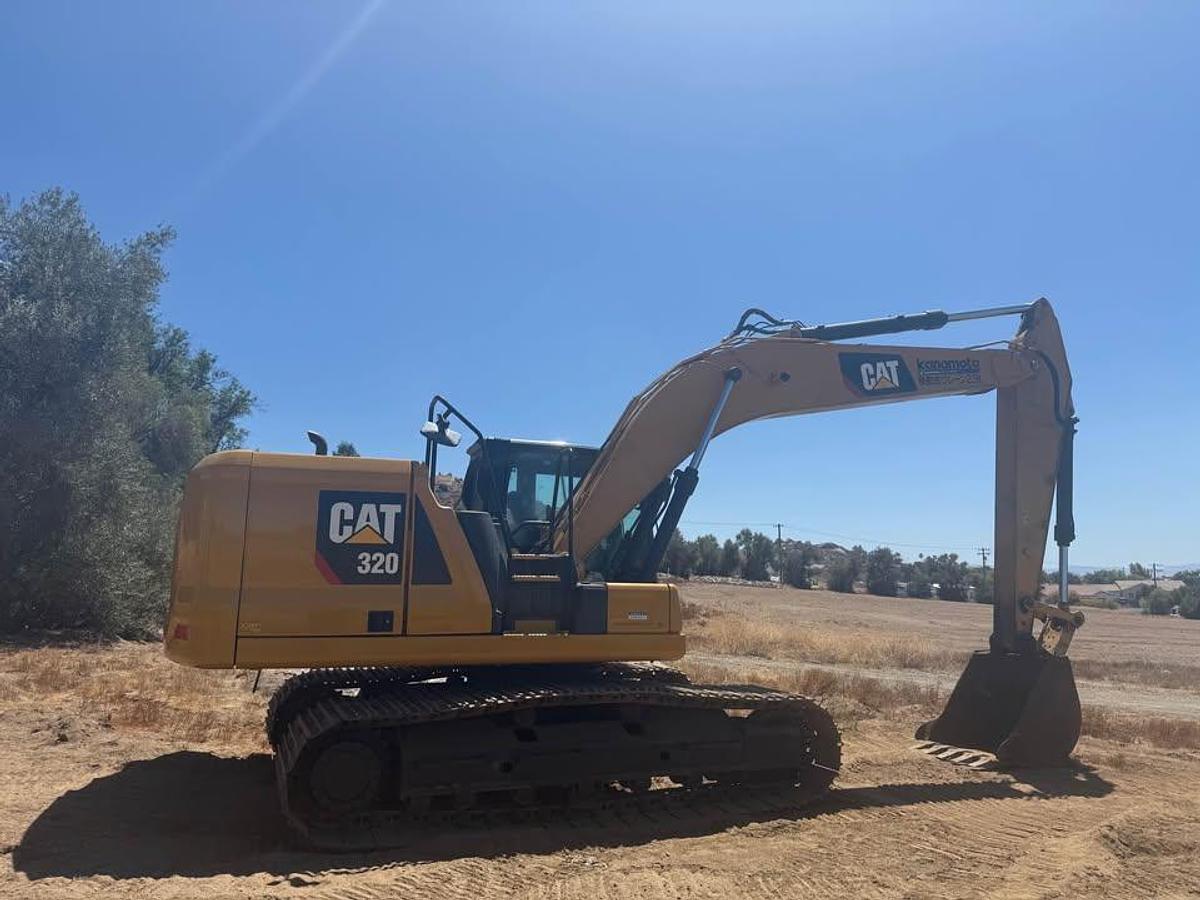

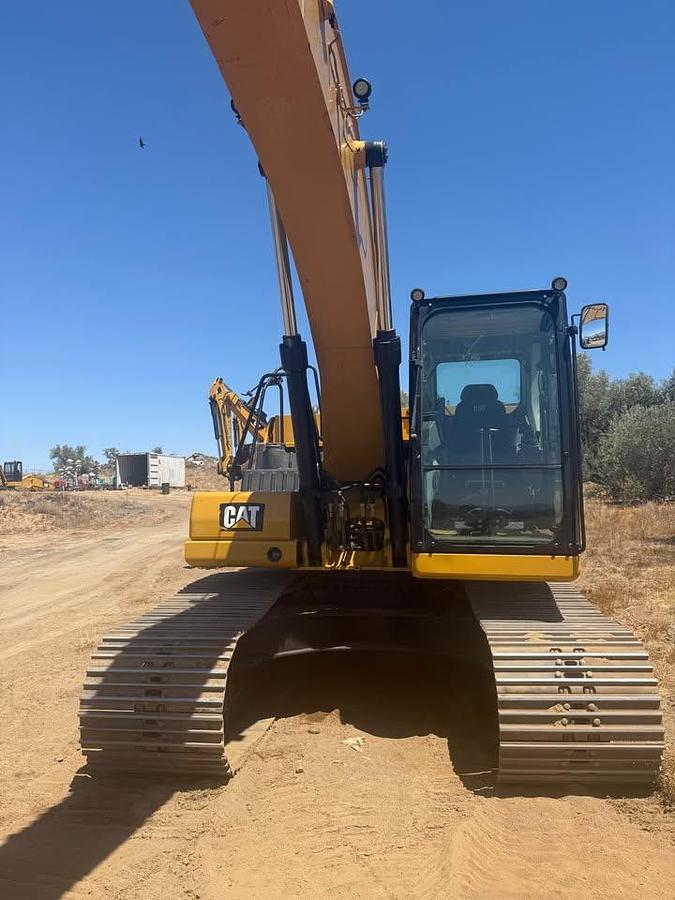

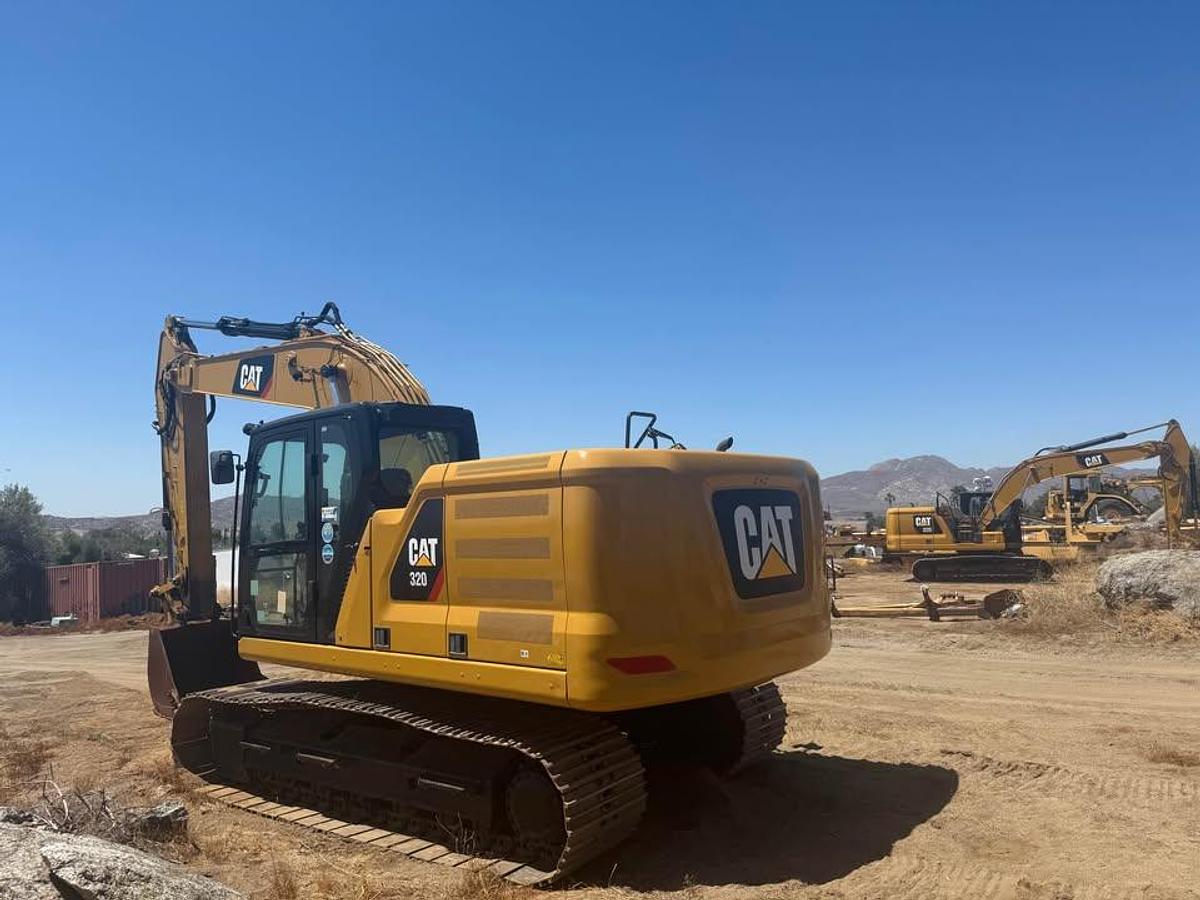

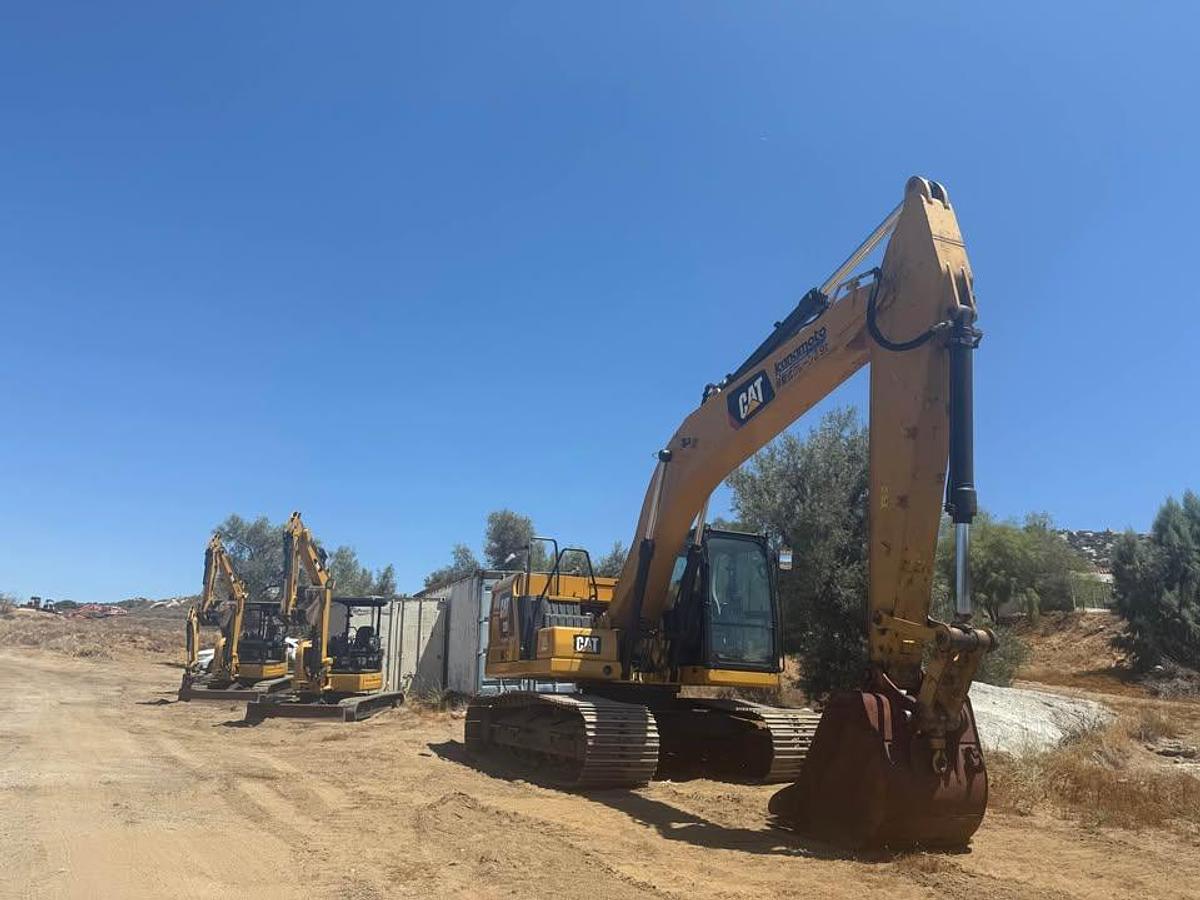

2018 CAT 320 Excavator

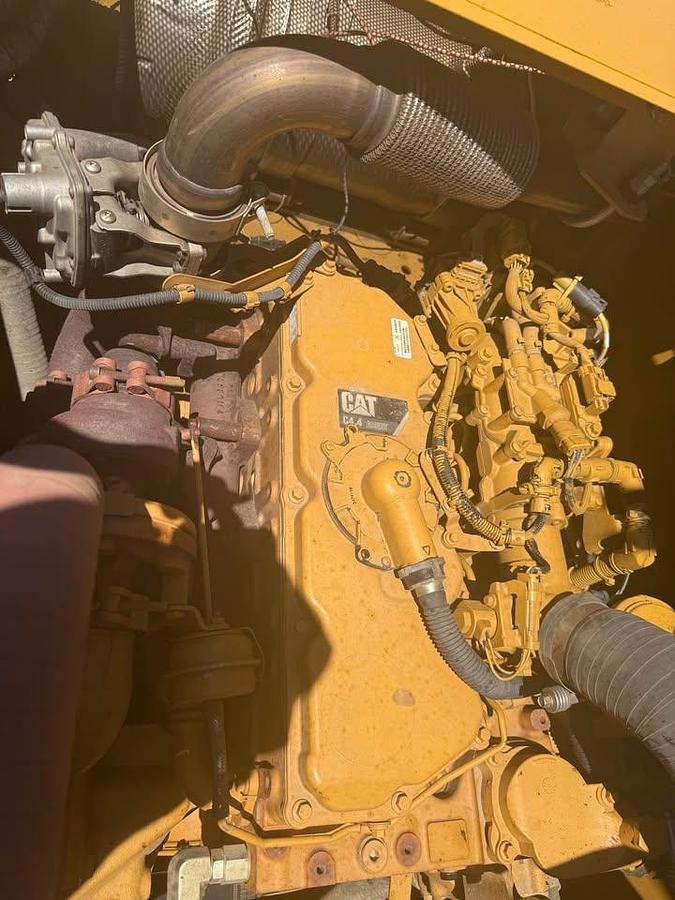

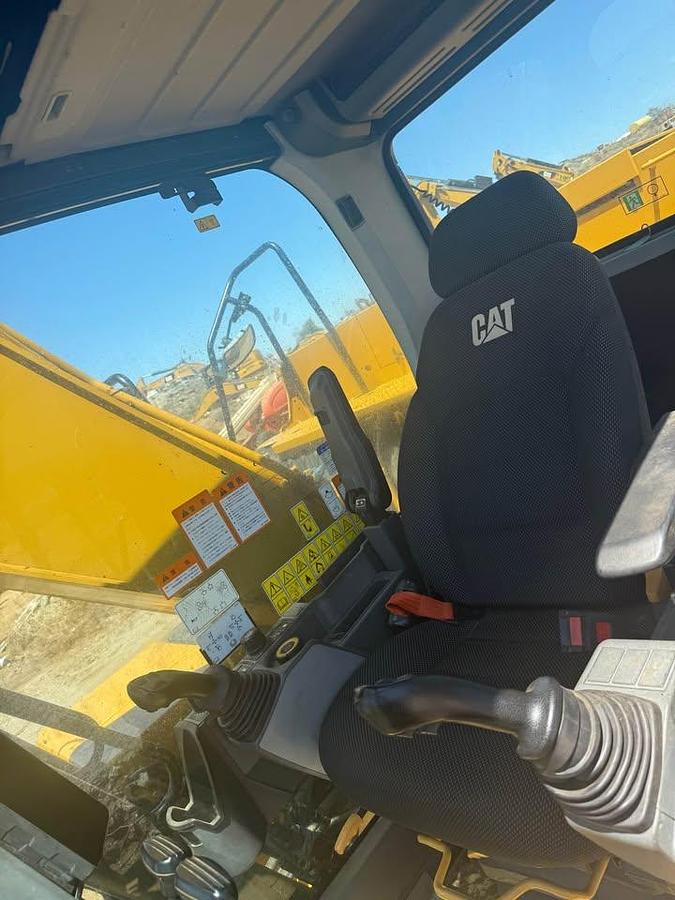

2018 CAT 320 Excavator Well-maintained and in excellent condition. This clean, strong, and tight machine comes equipped with good working A/C for operator comfort. It is fully serviced, dependable, and ready to get on the job right away. Engine & Powertrain - Engine Model: Cat C4.4 ACERT - Net Power: 162 hp (121 kW) - Gross Power: 164 hp (122 kW) - Displacement: 4.4 L (269 in³) - Bore × Stroke: 105 × 127 mm (4.1 × 5.0 in) - Emissions: U.S. EPA Tier 4 Final / EU Stage V Weights & Undercarriage - Operating Weight: ~22,500 kg (49,600 lb) - Includes: Reach Boom, R2.9 stick (9'6"), 1.19 m³ HD bucket, 790 mm (31 in) triple grouser shoes, 4.2 t counterweight Performance & Travel - Max Travel Speed: 5.7 km/h (3.5 mph) - Max Drawbar Pull: 205 kN (46,000 lbf) - Max Gradeability: 35° (70%) - Swing Speed: 11.3 rpm - Max Swing Torque: 74 kN·m (54,400 lbf-ft) Hydraulic System - Main Hydraulic Flow: 429 L/min (2 × 214.5 L/min pumps) - Hydraulic Pressures: - Equipment Normal: 35,000 kPa (5,075 psi) - Equipment Lift Mode: 38,000 kPa (5,510 psi) - Travel: 34,300 kPa (4,974 psi) - Swing: 26,800 kPa (3,886 psi) Cylinders & Controls - Boom Cylinder: 120 mm bore × 1,260 mm stroke - Stick Cylinder: 140 mm bore × 1,504 mm stroke - Bucket Cylinder: 120 mm bore × 1,104 mm stroke Dimensions - Height to Top of Cab: 2,960 mm (9'9") - Machine Length (with boom/stick/bucket): 9,530 mm (31'3") - Width (upper frame): 2,780 mm (9'1") - Tail Swing Radius: 2,830 mm (9'3") - Ground Clearance: 470 mm (1'7") - Track Gauge: 2,380 mm (7'9") - Track Shoes: 790 mm (31 in) Reach & Capacity - Boom Options: 5.7 m (18'8") reach boom or 8.85 m (29'0") SLR boom - Stick Options: 2.9 m (9'6") reach stick or 6.28 m (20'7") SLR stick - Max Digging Depth: ~6.7 m (22 ft) - Max Horizontal Reach: ~9.9 m (32 ft) - Bucket Capacity: ~1.19 m³ - Tear-out Force: ~150 kN Don't miss this reliable 2018 Caterpillar 320. Private seller retiring from the business. It has been inspected and maintained. Recent service includes: Final drive gear oil flushed and replaced. and Main hydraulic pump inspected and resealed. Priced competitively for a quick turnaround.
