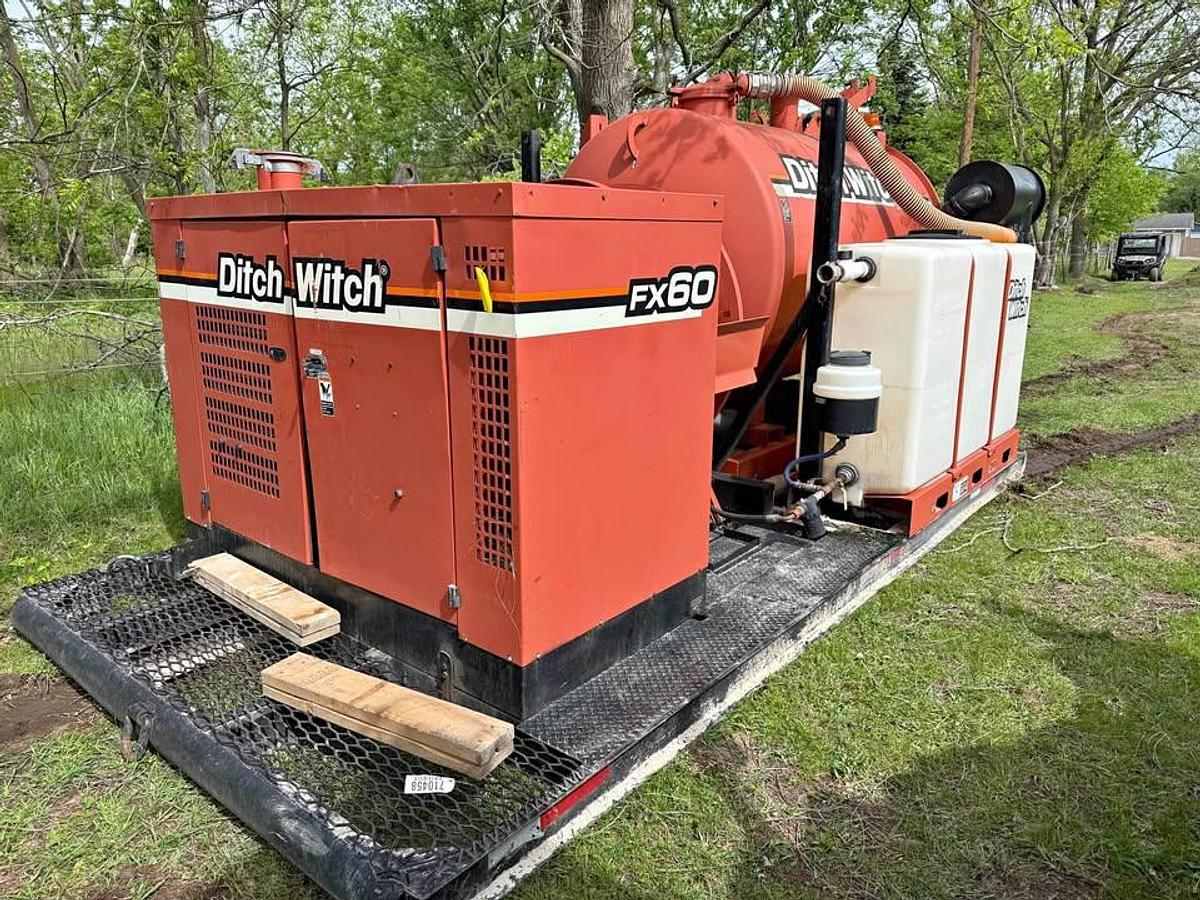

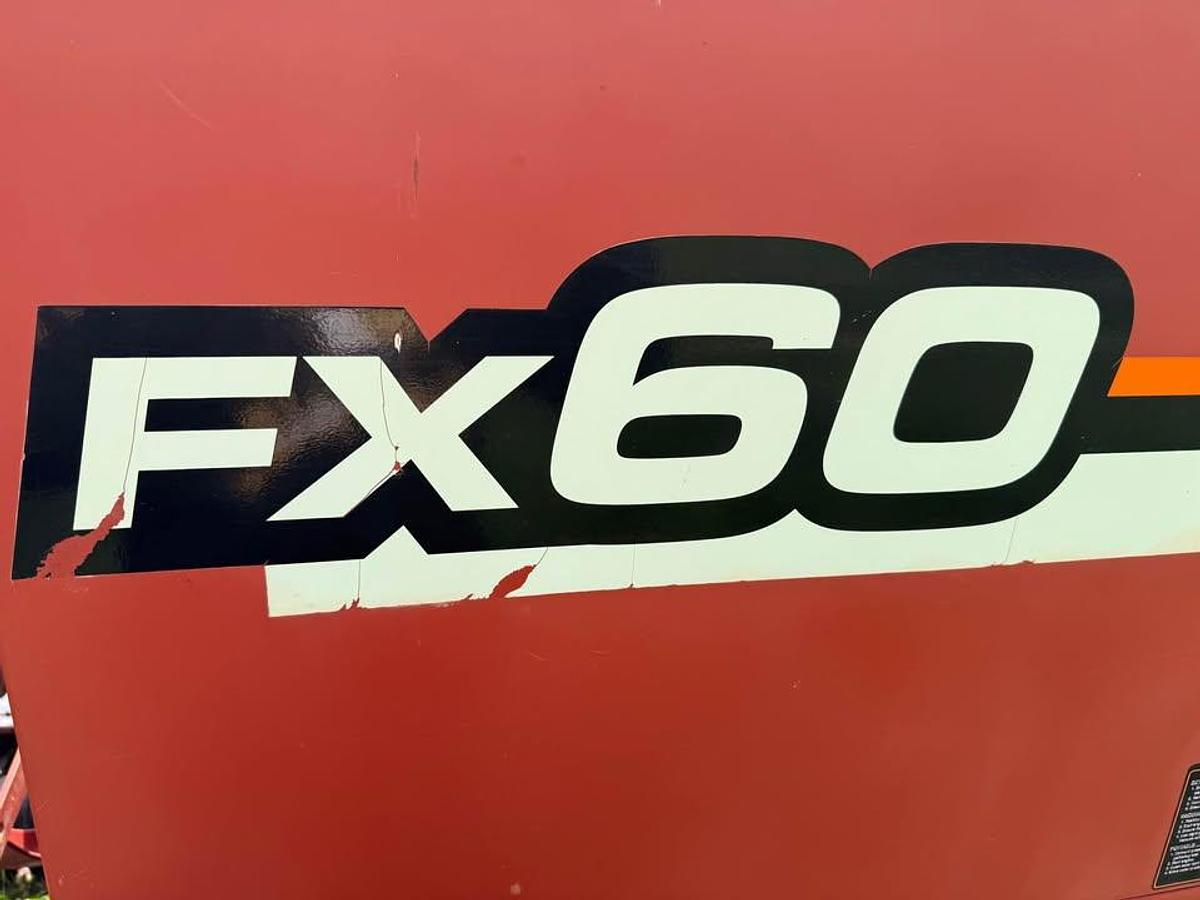

2008 DITCH WITCH FX60 VACUUM EXCAVATOR (1,200-GALLON)

Machine Overview & Value Proposition

Built for heavy-duty non-destructive utility exposure, potholing, slot trenching, and rapid fluid and debris evacuation, this Ditch Witch FX60 is configured with the premier 1,200-gallon spoils package. Clocking in at just 554 displayed hours, this unit pairs a proven 60 HP Cummins diesel power plant with industry-leading quiet operation (82 dBA operator ear noise rating).

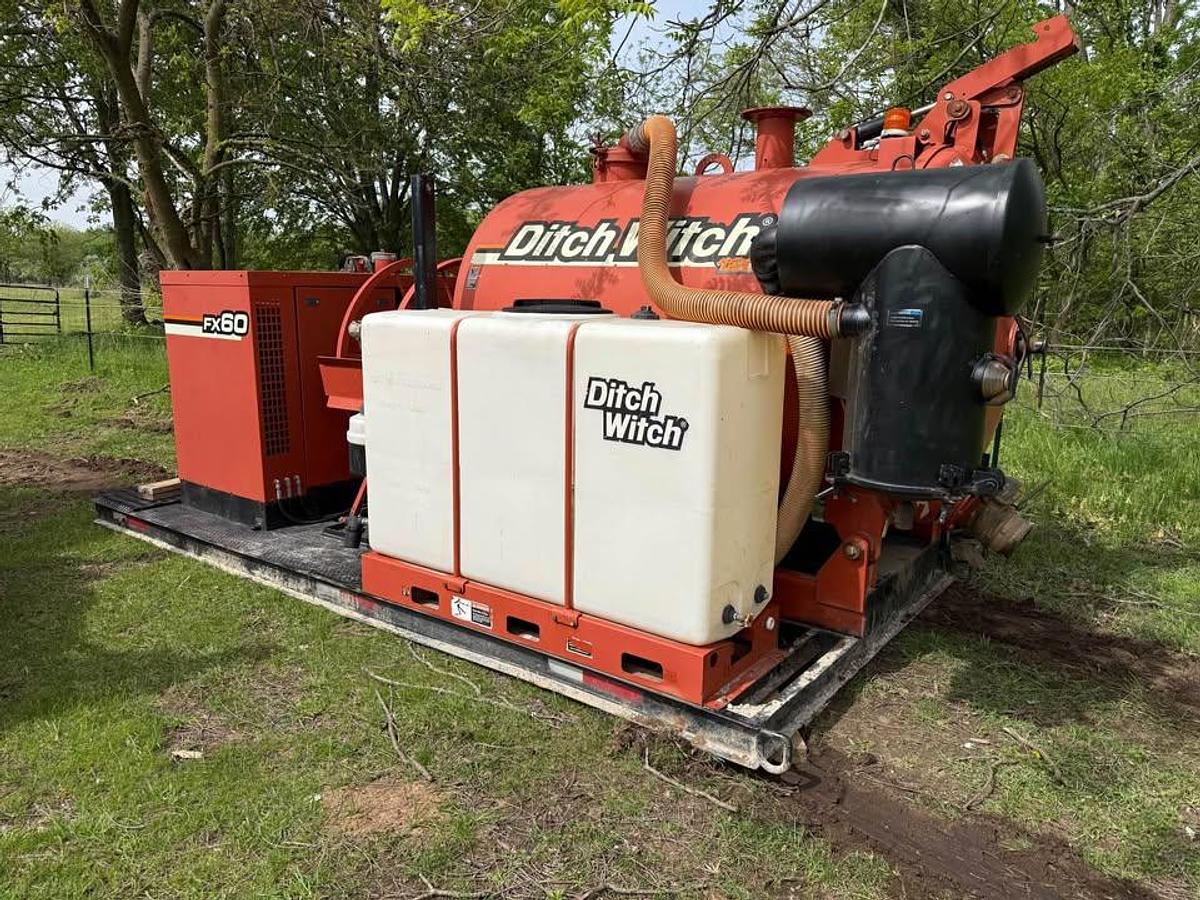

The saddle-style freshwater tank design keeps the overall center of gravity low for superior highway towing stability, while the fully enclosed, insulated power pack protects vital engine and blower components from weather and job site wear. A powerhouse built to handle urban utility contracts and high-volume industrial cleanups without missing a beat.

BAM Verified Machine Specifications

SpecificationDetails

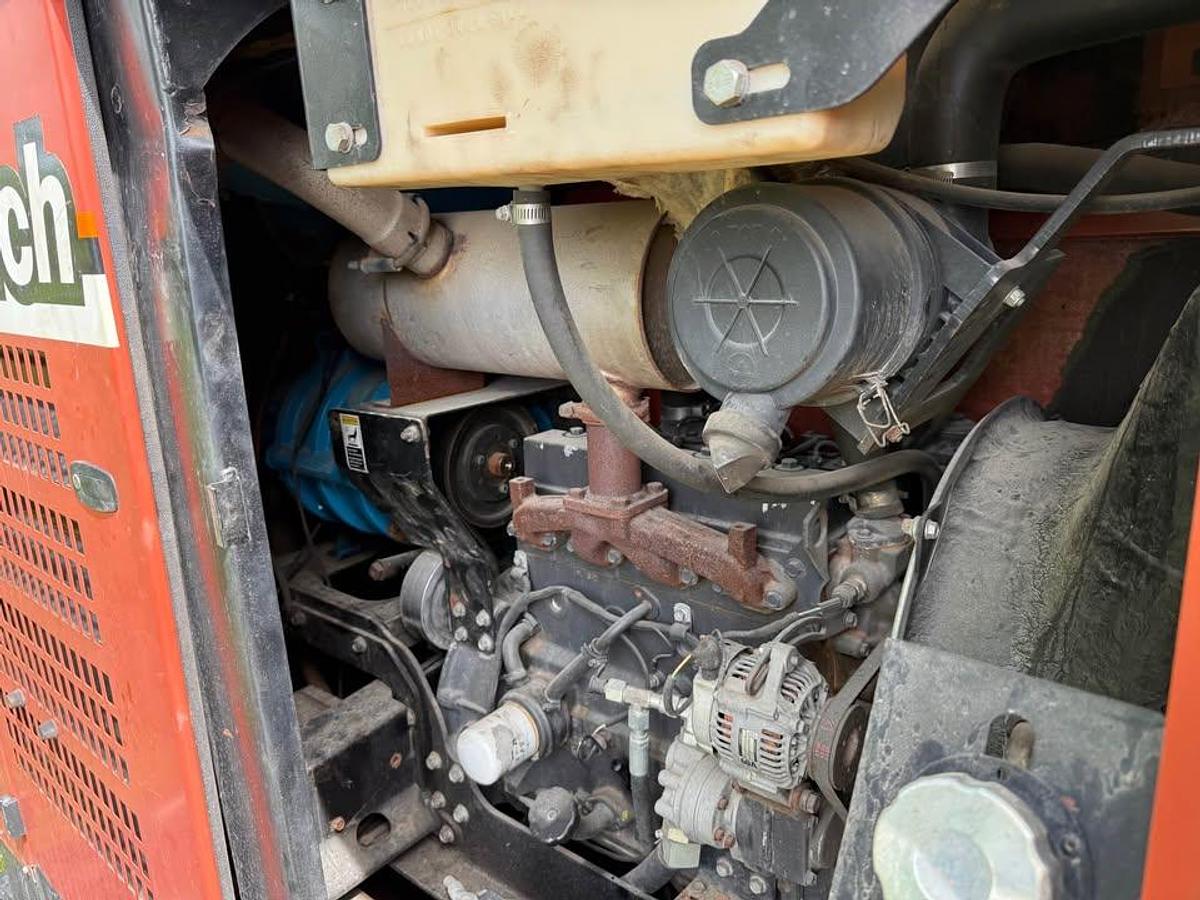

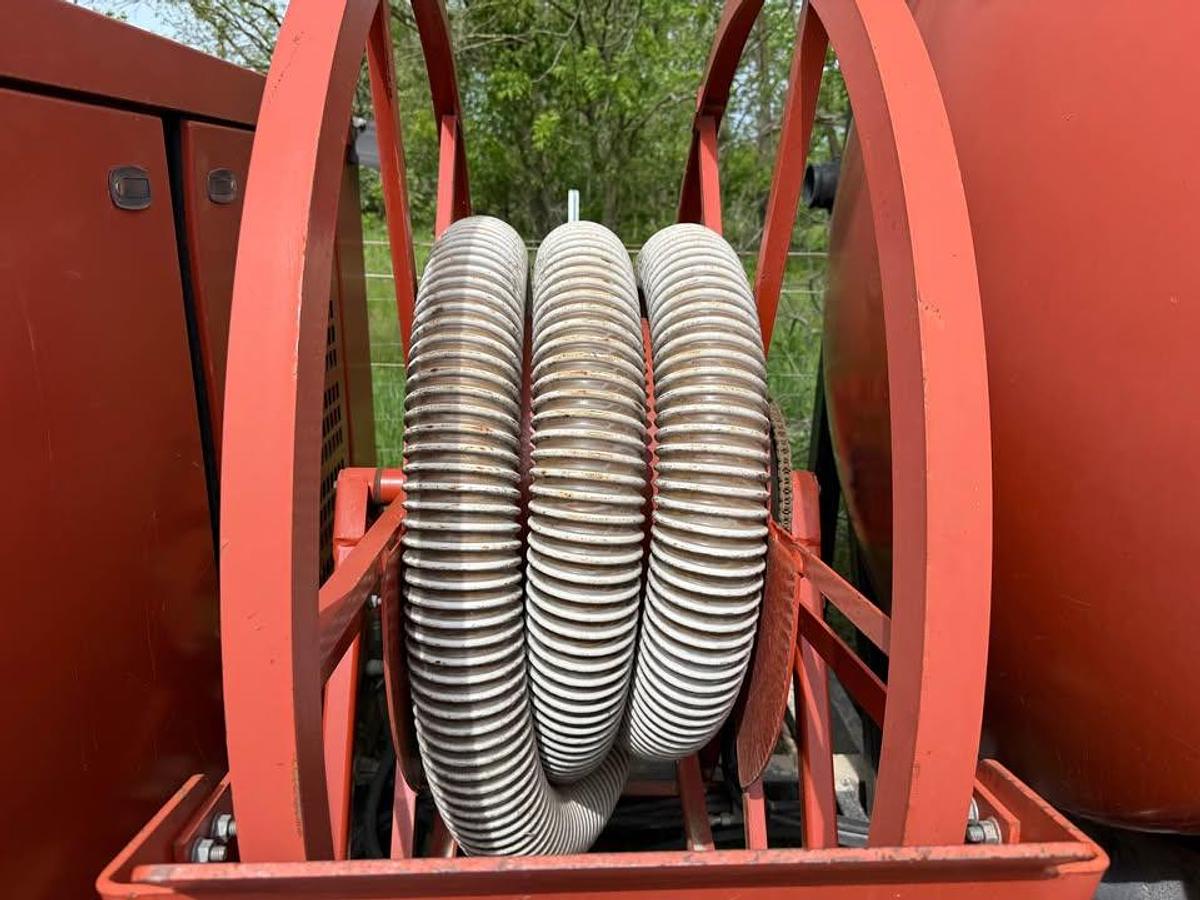

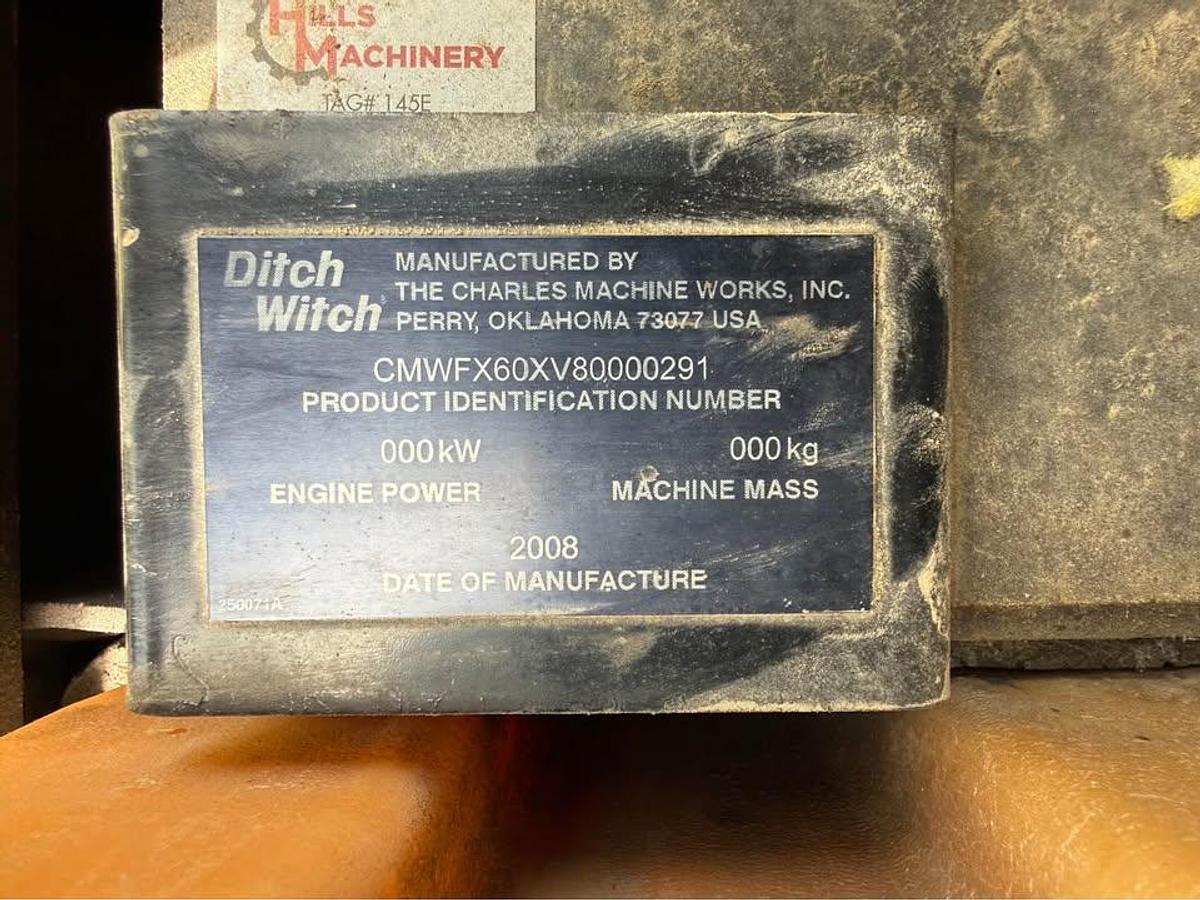

Displayed Hours554 HoursEngine60 HP Cummins B3.3NA Diesel (4-Cylinder, 3.3L Direct Injection)Dry Weight11,230 lbs (OEM Verified for 1,200-Gallon Configuration)Operating Weight (Full)24,880 lbs (Max Weight with Full Water & Debris Tanks)Attachments & Equip.1,200-Gal Spoils Tank, 500-Gal Water Tanks, Suction Hoses, Wash LanceVIN / SerialPending Inspection

OEM Technical Data

• Vacuum System Performance: Belt-driven positive displacement blower generating 928 CFM air flow with a maximum vacuum of 16 inHg.

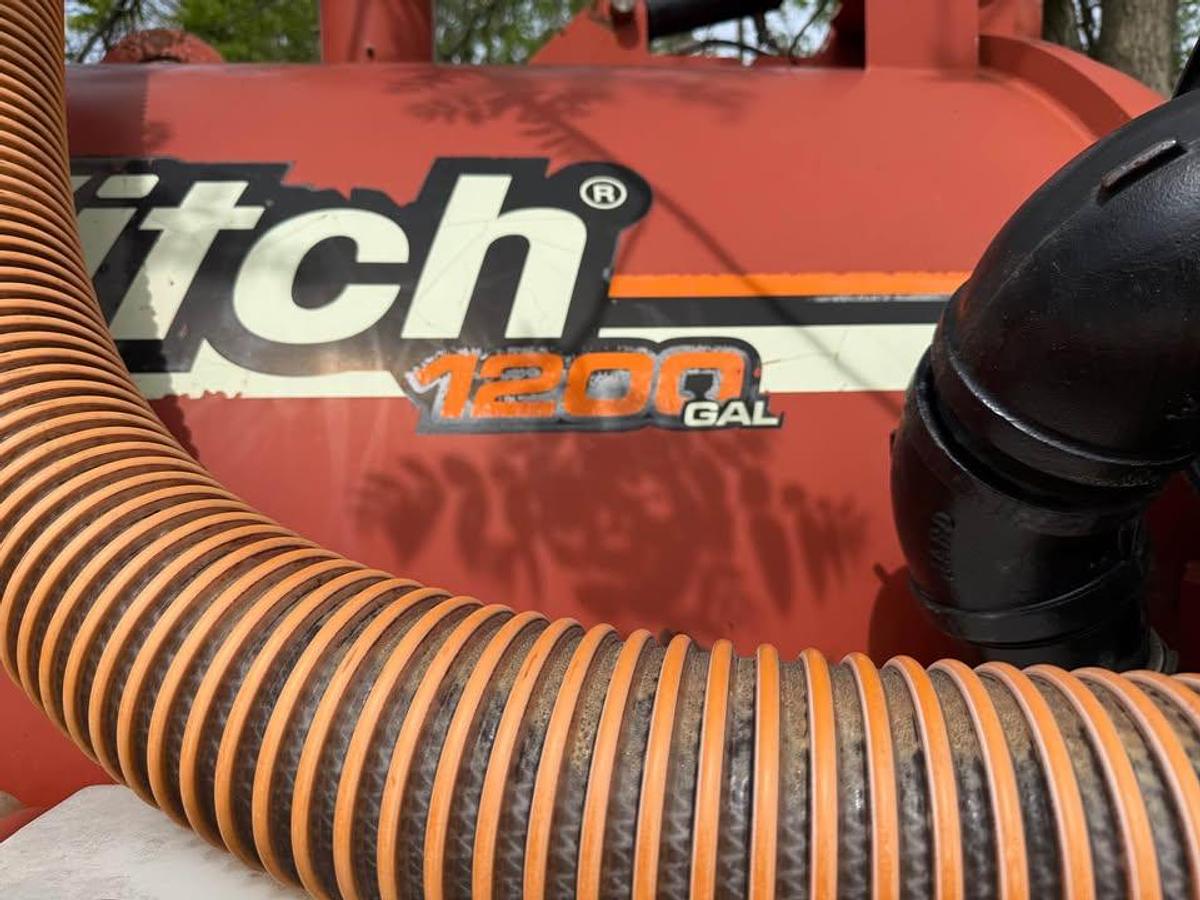

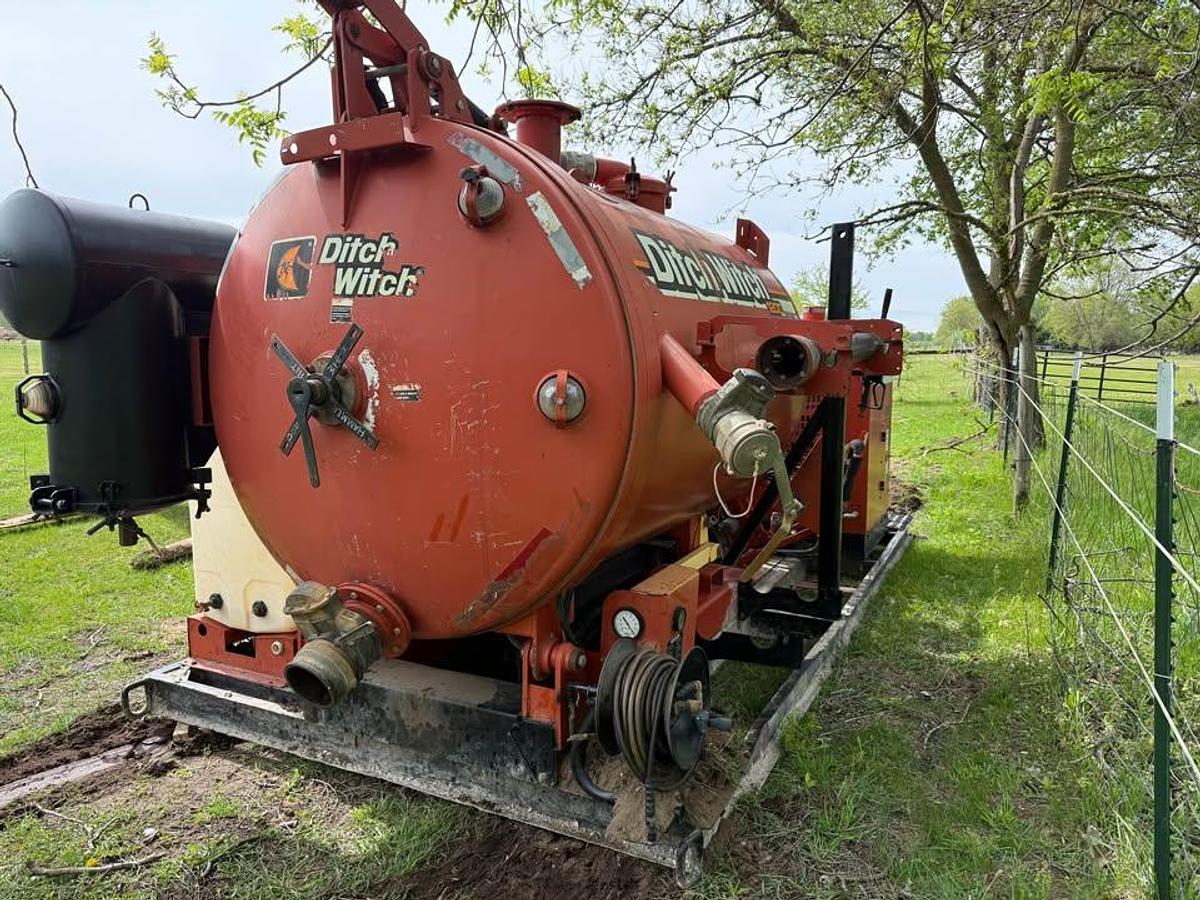

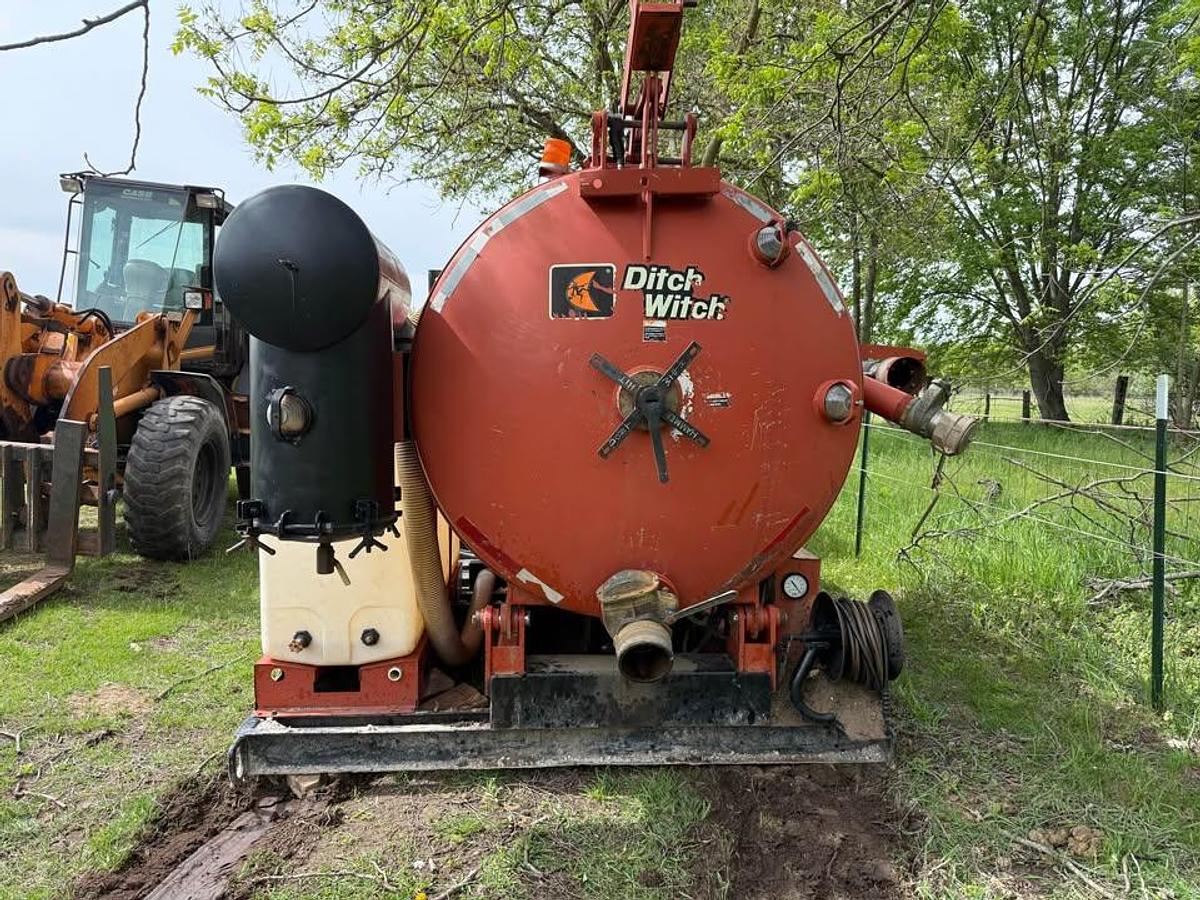

• Spoils / Debris Tank: 1,200-gallon (4,542 L) capacity, 60-inch diameter, featuring a full-opening horizontal rear door with single-point latch and 50-degree hydraulic tilt dump cylinders.
• Water Pump System: High-pressure wash system delivering 3,500 PSI @ 5.2 GPM, equipped with an electric clutch and auto de-clutch that automatically disengages the water pump when not in use to direct full engine power to vacuum suction.
• Fresh Water Storage: 200 gallon tank
• Filtration System: Reusable, single-element 3-micron washable polyester vacuum filter paired with an integrated cyclone separator and 10-gallon primary water trap.
• Dimensions (Overall Footprint): 245 in. Length (20.4 ft) x 100.5 in. Width x 99 in. Height. (Seller notes a 96" x 16' skid/deck footprint).
• Electrical & Fuel: 12V DC electrical system with 800 CCA cold-cranking battery; 19-gallon diesel fuel tank.

Machine History & Operator Notes

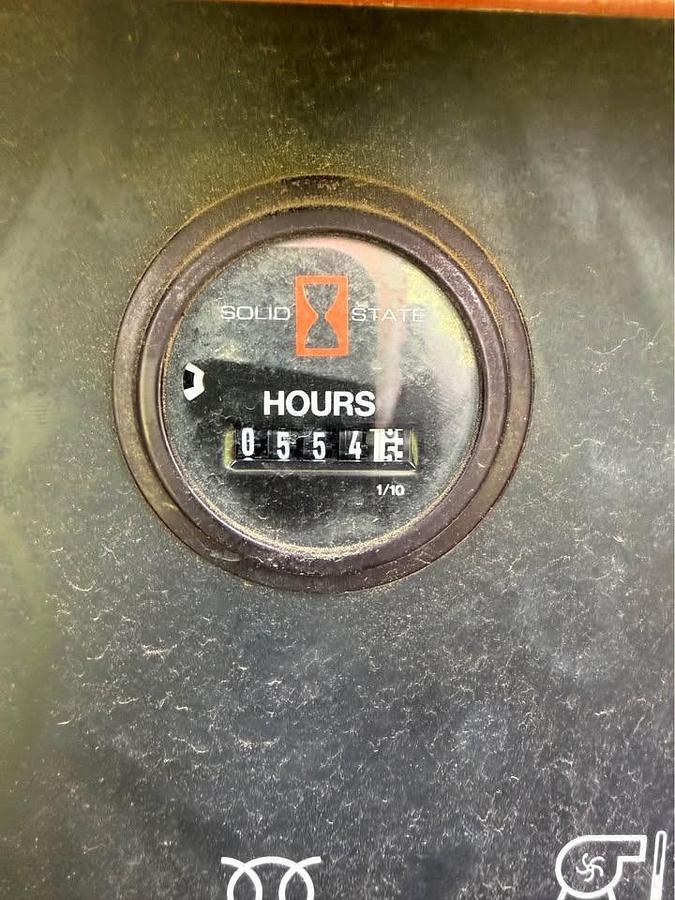

• Condition & Maintenance: Exceptional low-hour unit (554 hours) exhibiting crisp hydraulic response, strong vacuum draw, and reliable cold-start engine performance. The machine was recently serviced and checked through; maintenance records are available for inspection.
• Seller Status: Highly motivated seller. Asset is positioned for immediate sale and rapid yard clearance.

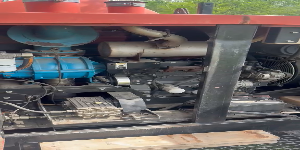

• Media Available: High-definition operational walk-around video, engine running footage, and suction demonstration available upon direct inquiry.
